Bevel Gears

Moulded plastic bevel gears in metric module pitches with ratios from 1:1to 5:1. These gears are suitable for a range of applications and are sold in pairs.

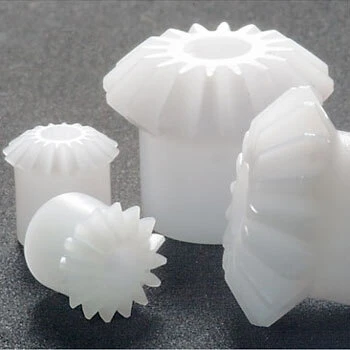

Bevel Gears
Specification
Material: Delrin Acetal
Ratios: 1:1, 2:1, 3:1, 4:1, 5:1
Operating temperature: -40°C to 80°C
Bevel Gear drawing

Part no
(Link)		 Pitch
(mod)		 No.
of
Teeth		 All dimensions in mm Brass
Insert
and
Set
Screw
Outside
Dia.		 Pitch
Dia.		 Bore
Dia.
"B"		 'CD' Hub
dia 'C'		 Boss
Length 'E'		 Tooth
Width 'F'		 Length
'G'		 Length
'H'
1:1 Ratio
GB05M016 0.5 16 8.7 8.0 3.0 10.5 7.0 6.0 2.0 8.0 8.0 No
GB1M016 1 16 17.6 16 5.0 18.4 12.0 8.0 4.7 13.6 13.6 No
GB1M016BS 1 16 17.6 16 5.0 18.4 16.0 8.0 4.7 13.6 13.6 Yes
2:1 Ratio
GB1M215030 1 15 16.8 15.0 5.0 26.4 12.2 10.6 6.6 17.0 17.0 No
30 31.1 30.0 8.0 20.9 18.0 9.1 6.6 14.8 16.2 No
GB1M215030BS 1 15 16.8 15.0 5.0 26.4 16.0 10.6 6.6 17.0 17.0 Yes
30 31.1 30.0 4.0 20.9 18.0 9.1 6.6 14.8 16.2 Yes
3:1 Ratio
GB1M315045 1 15 16.6 15.0 5.0 34.3 12.3 11.0 9.2   20.4 No
45 46.1 45.0 10.0 22.7 23.4 9.6 9.2 16.5 18.2 No
GB1M315045BS 1 15 16.6 15.0 5.0 34.3 16.0 11.0 9.2   20.4 Yes
45 46.1 45.0 6.0 22.7 23.4 9.6 9.2 16.5 18.2 Yes
4:1 Ratio
GB1M410040 1 10 12.0 10.0 4.0 30.1 7.8 9.3 8.2   17.7 No
40 40.8 40.0 10.0 20.1 23.4 10.8 8.2 15.7 17.0 No
GB1M410040BS 1 10 12.0 10.0 4.0 30.1 12.7 9.3 8.2   17.7 Yes
40 40.8 40.0 6.0 20.1 23.4 10.8 8.2 15.7 17.0 Yes
5:1 Ratio
GB1M512060 1 12 13.7 12.0 4.0 40.5 9.5 10.0 9.5   20.3 No
60 60.4 60 10.0 21.0 20.5 11.0 9.5 15.5 17.4 No
GB1M512060BS 1 12 13.7 12.0 4.0 40.5 14.3 10.0 9.5   20.3 Yes
60 60.4 60 6.0 21.0 20.5 11.0 9.5 15.5 17.4 Yes
GB1M512* 1 12 13.7 12.0 4.0 40.5 9.5 10.0 9.5   20.3 No
GB1M512BS* 1 12 13.7 12.0 4.0 40.5 14.3 10.0 9.5   20.3 Yes
*NB: These gears match with 60 tooth bevel gear only. Their geometry is not compatible with other gears.

Select from our range of Bevel Gears below. The product selling unit/price is per PAIR.

Display: ListGrid
Show:
Sort By:
Pair Bevel Gears, 0.5 Mod,16 T, 3mm Bore
Pair Bevel Gears, 0.5 Mod,16 T, 3mm Bore
GB05M016
Pair Bevel Gears, 0.5 MOD,16 T, 3mm Bore ..
Stock: 28 pairs
£2.78 /pair
Excl. VAT: £2.32
10 or more: £2.50 /pair
25 or more: Please ask
Pair Bevel Gears, 1 Mod,16 T, 5mm Bore
Pair Bevel Gears, 1 Mod,16 T, 5mm Bore
GB1M016
Pair Bevel Gears, 1 MOD,16 T, 5mm Bore ..
Stock: 6 pairs
£3.37 /pair
Excl. VAT: £2.81
10 or more: £3.04 /pair
25 or more: Please ask

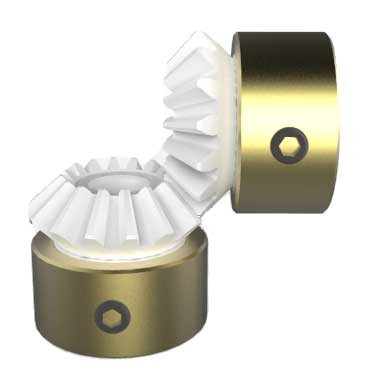

Pair Bevel Gears, 1 MOD,16 T, 5mm Bore, with Set Screws
Pair Bevel Gears, 1 MOD,16 T, 5mm Bore, with Set Screws
GB1M016BS
Pair Bevel Gears, 1 MOD,16 T, 5mm Bore, Brass Bush, Set Screw ..
Stock: 3 - 4 Weeks
£8.82 /pair
Excl. VAT: £7.35
10 or more: £7.93 /pair
25 or more: Please ask
Pair Bevel Gears, 1 Mod, 15 Tooth + 30 Tooth
Pair Bevel Gears, 1 Mod, 15 Tooth + 30 Tooth
GB1M215030
Pair Bevel Gears, 1 Mod, 15 Tooth + 30 Tooth ..
Stock: 2 pairs
£7.99 /pair
Excl. VAT: £6.66
10 or more: £7.19 /pair
25 or more: Please ask

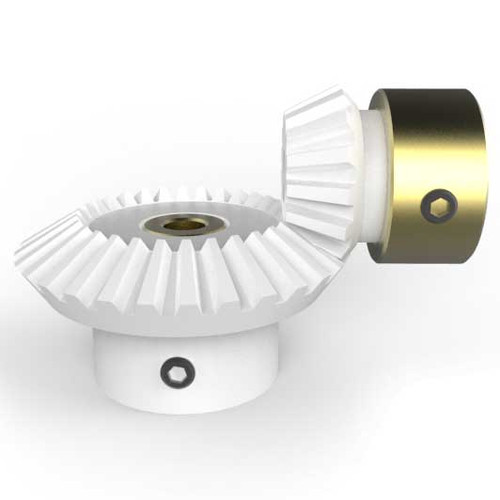

Pair Bevel Gears, 1 Mod, 15 Tooth + 30 Tooth, with Set Screws
Pair Bevel Gears, 1 Mod, 15 Tooth + 30 Tooth, with Set Screws
GB1M215030BS
Pair Bevel Gears, 1 Mod, 15 Tooth + 30 Tooth, Brass Bush, Set Screw ..
Stock: 3 - 4 Weeks
£12.67 /pair
Excl. VAT: £10.56
10 or more: £11.40 /pair
25 or more: Please ask

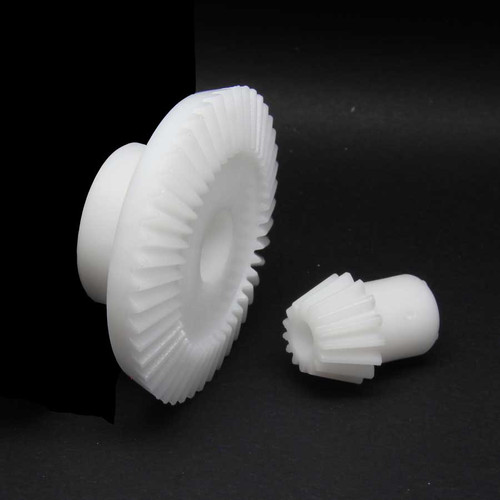

Pair Bevel Gears, 1 Mod, 15 Tooth + 45 Tooth
Pair Bevel Gears, 1 Mod, 15 Tooth + 45 Tooth
GB1M315045
Pair Bevel Gears, 1 Mod,15 Tooth + 45 Tooth ..
Stock: 8 pairs
£8.53 /pair
Excl. VAT: £7.11
10 or more: £7.67 /pair
25 or more: Please ask
Pair Bevel Gears, 1 Mod, 15 Tooth + 45 Tooth, with Set Screws
Pair Bevel Gears, 1 Mod, 15 Tooth + 45 Tooth, with Set Screws
GB1M315045BS
Pair Bevel Gears, 1 Mod,15 Tooth + 45 Tooth, Brass Bush, Set Screw ..
Stock: 3 - 4 Weeks
£13.26 /pair
Excl. VAT: £11.05
10 or more: £11.94 /pair
25 or more: Please ask
Pair Bevel Gears, 1 Mod, 10 Tooth + 40 Tooth
Pair Bevel Gears, 1 Mod, 10 Tooth + 40 Tooth
GB1M410040
Pair Bevel Gears, 1 Mod, 10 Tooth + 40 Tooth ..
Stock: 8 pairs
£9.07 /pair
Excl. VAT: £7.56
10 or more: £8.17 /pair
25 or more: Please ask

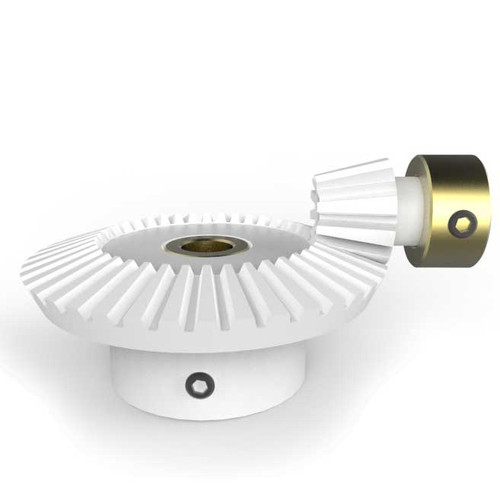

Pair Bevel Gears, 1 Mod, 10 Tooth + 40 Tooth, with Set Screws
Pair Bevel Gears, 1 Mod, 10 Tooth + 40 Tooth, with Set Screws
GB1M410040BS
Pair Bevel Gears, 1 Mod, 10 Tooth + 40 Tooth, Brass Bush, Set Screw ..
Stock: 1 pair
£13.70 /pair
Excl. VAT: £11.42
10 or more: £12.34 /pair
25 or more: Please ask
Single Bevel Gear, 1 Mod, 12 Tooth to go with set GB1M512060
Single Bevel Gear, 1 Mod, 12 Tooth to go with set GB1M512060
GB1M512
Single Bevel Gears, 1 Mod, 12 Tooth to go with set GB1M512060 ..
Stock: 20 pcs
£2.90 /each
Excl. VAT: £2.42
10 or more: £2.60 /each
25 or more: Please ask

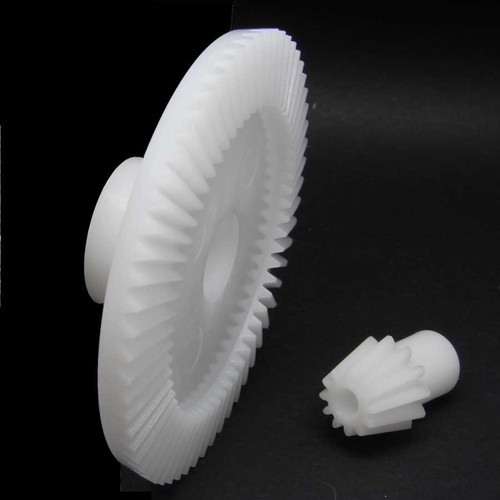

Pair Bevel Gears, 1 Mod, 12 Tooth + 60 Tooth
Pair Bevel Gears, 1 Mod, 12 Tooth + 60 Tooth
GB1M512060
Pair Bevel Gears, 1 Mod, 12 Tooth + 60 Tooth ..
Stock: 2 pairs
£9.64 /pair
Excl. VAT: £8.03
10 or more: £8.66 /pair
25 or more: Please ask

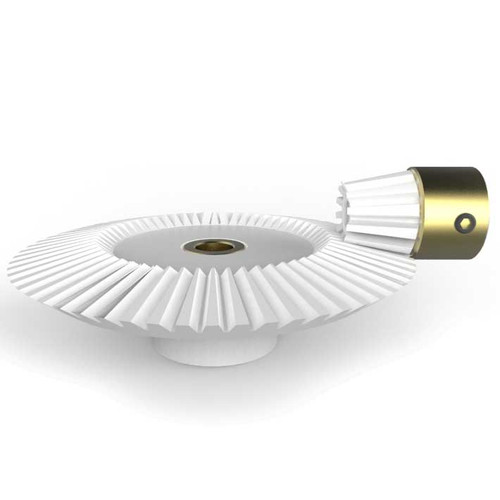

Pair Bevel Gears, 1 Mod, 12 Tooth + 60 Tooth, with Set Screws
Pair Bevel Gears, 1 Mod, 12 Tooth + 60 Tooth, with Set Screws
GB1M512060BS
Pair Bevel Gears, 1 Mod, 12 Tooth + 60 Tooth, Brass Bush, Set Screw ..
Stock: 2 pairs
£14.64 /pair
Excl. VAT: £12.20
10 or more: £13.18 /pair
25 or more: Please ask
Single Bevel Gear, 1 Mod, 12 Tooth to go with set GB1M512060BS, with Set Screw
Single Bevel Gear, 1 Mod, 12 Tooth to go with set GB1M512060BS, with Set Screw
GB1M512BS
Single Bevel Gear, 1 Mod, 12 Tooth to go with set GB1M512060, Brass Bush, Set Screw ..
Stock: 10 pcs
£4.97 /each
Excl. VAT: £4.14
10 or more: £4.48 /each
25 or more: Please ask
