Carousel Drive Example

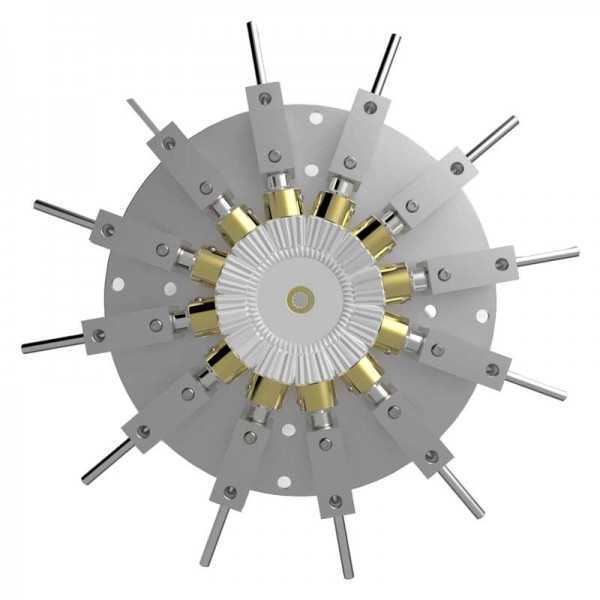

This is an example of a Carousel drive using our Bevel Gears to give multiple rotating spindles plus rotation of the carousel itself. Although this example has 12 spindles, it is also possible to have 2, 3, 4, 6 or 8 equi-spaced shafts. All the parts used are available on our site.

Zoom

Parts List

Part Number (Link)	Image	Description	Price each	Quantity Used (For 12 spindle example)
SH04M		303 Stainless Steel Shaft, 4mm Diameter	£3.34
SH06M		303 Stainless Steel Shaft, 6mm Diameter	£3.75
CL04M		Collar, Plated Steel,4mm I/D	£1.82
CL03M		Collar, Plated Steel, 3mm I/D	£1.67
GB1M512060BS		Pair Bevel Gears, 1 Mod, 12 Tooth + 60 Tooth, with Set Screws	£14.64
GB1M512BS		Single Bevel Gear, 1 Mod, 12 Tooth to go with set GB1M512060BS, with Set Screw	£4.97
GR1M036B-6		1.0 Mod Spur Gear, 36 T, 6mm Bore and Setscrew	£11.52
GR1M048B-6		1.0 Mod Spur Gear, 48 T, 6mm Bore and Setscrew	£14.56
MKTH040-6		Flanged Turntable Hub with 6mm Bore	£5.24
MKTTT150D-32			£0.00
BB06M		Pillow Block with 6mm Bore Ball Bearing	£6.14
MB04MP		Shaft Mounting Block - 4mm Bore Bore	£5.38
MKEB15X10		Brass Elbow Block	£2.32
BASE80X80		Square Construction Base, 80 x 80 x 22	£3.96
GMW32W0180		Worm Gearmotor, Ratio 180:1	£21.80
GMW32WBKT		Bracket for GMW32 Motors	£4.90
SCREWM5X010-CAP		Socket Cap Head Setscrew M5 x 10 BZP. Pack 40.	£2.36
SCREWM5X050-CAP		Socket Cap Head Setscrew M5 x 50 BZP. Pack 10.	£1.46
SPACER-5x10-05		Spacer 5.2d x 10D x 5W Plastic. Pack 30.	£4.73
NUT-M5-BZP		Nut M5 BZP. Pack 200	£1.60
WASHER-LOCK-M5		Locking Washer M5, Overlap external. Pack 50.	£0.57
WASHER-A-M5-BZP		Washer M5, Form A, BZP, Pack 100	£0.58
