Pan and Tilt Example

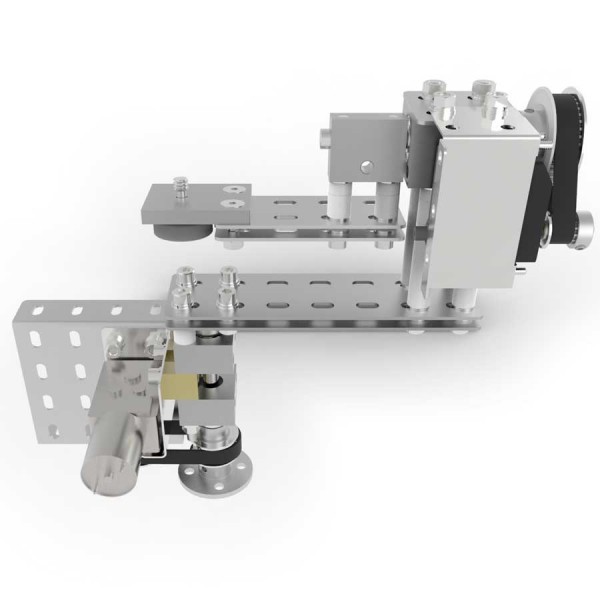

This is a Pan and Tilt used for cameras. All the parts used are available on our site.

Part Number (Link)	Image	Description	Price each	Quantity Used
PL3M012AL-06			£0.00
PL3M024AL-06		Aluminium 3mm HTD Pulley, 24T, 6mm Bore	£9.23
PL3M024AL-08		Aluminium 3mm HTD Pulley, 24T, 8mm Bore	£9.23
PL3M036AL-08			£0.00
B3M050		HTD Rubber Timing Belt, 50 T	£7.87
BB08M		Pillow Block with 8mm Bore Ball Bearing	£6.14
CL08M		Collar, Plated Steel, 8mm I/D	£2.20
MKCMP025		Camera Mounting Plate including 1/4"UNC camera bolt	£7.62
MKBLK30X25			£0.00
BASE80X80		Square Construction Base, 80 x 80 x 22	£3.96
PLT40X40		Construction Plate, 40 X 40	£2.32
PLT80X40		Construction Plate, 80 X 40	£2.57
PLT140X40		Construction Plate, 140 X 40	£1.62
MKEB15X10		Brass Elbow Block	£2.32
MKTH040-8		Flanged Turntable Hub with 8mm Bore	£5.24
GMW32W0330		Worm Gearmotor, Ratio 330:1	£21.80
GMW32WBKT		Bracket for GMW32 Motors	£4.90
SH08M		303 Stainless Steel Shaft, 8mm Diameter	£4.31
SRV180MG2BB			£0.00
SRVBKT			£0.00
SCREWM5X010-CAP		Socket Cap Head Setscrew M5 x 10 BZP. Pack 40.	£2.36
SCREWM5X015-CAP		Socket Cap Head Setscrew M5 x 15 BZP. Pack 20.	£1.44
SCREWM5X050-CAP		Socket Cap Head Setscrew M5 x 50 BZP. Pack 10.	£1.46
SCREWM5X080-CAP		Socket Cap Head Setscrew M5 x 80 BZP. Pack 4.	£1.32
SCREWM5X100-CAP		Socket Cap Head Setscrew M5 x 100 BZP. Pack 4.	£2.08
SPACER-5x10-01			£0.00
SPACER-5x10-05		Spacer 5.2d x 10D x 5W Plastic. Pack 30.	£4.73
SPACER-5x10-10			£0.00
SPACER-5x10-40			£0.00
NUT-M5-BZP		Nut M5 BZP. Pack 200	£1.60
WASHER-LOCK-M5		Locking Washer M5, Overlap external. Pack 50.	£0.56
WASHER-A-M5-BZP		Washer M5, Form A, BZP, Pack 100	£0.58
