Rack and Pinion Example

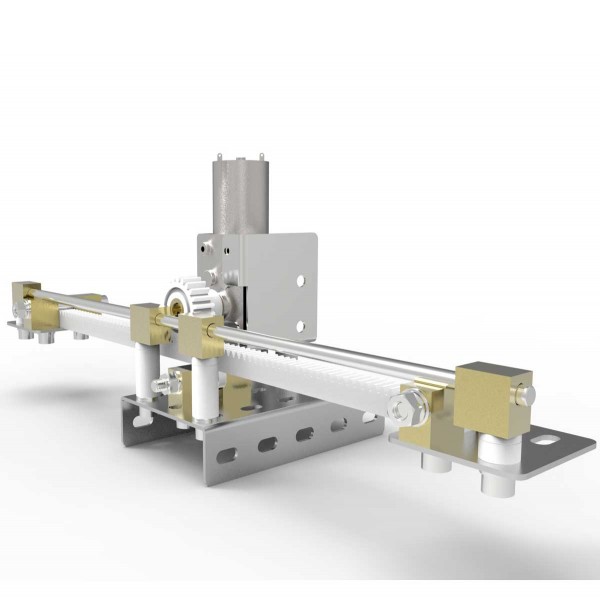

This is a simple motorized Rack and Pinion that can be used as an actuator for opening or lifting applications. All the parts used are available on our site.

Zoom

Parts List

Part Number (Link)	Image	Description	Price each	Quantity Used
GR1M024B-6		1.0 Mod Spur Gear, 24 T, 6mm Bore and Setscrew	£9.22
MKSH05D-600		Shaft, Stainless Steel 5mm O/D x 600mm	£8.02
RK1M		Rack, 1 Mod, Length 250mm	£9.35
BR05M-13		Miniature Ball Bearing 5mm Bore, 13mm O/D	£1.99
MKEB15X10		Brass Elbow Block	£2.32
CHAN100X60		Construction Channel, 100 x 60 x 22	£4.03
PLT40X40		Construction Plate, 40 X 40	£2.32
GMW32W0330		Worm Gearmotor, Ratio 330:1	£21.80
GMW32WBKT		Bracket for GMW32 Motors	£4.90
SCREWM5X010-CAP		Socket Cap Head Setscrew M5 x 10 BZP. Pack 40.	£2.36
SCREWM5X020-CAP		Socket Cap Head Setscrew M5 x 20 BZP. Pack 10.	£0.77
SCREWM5X030-CAP		Socket Cap Head Setscrew M5 x 30 BZP. Pack 10.	£0.85
SCREWM5X050-CAP		Socket Cap Head Setscrew M5 x 50 BZP. Pack 10.	£1.46
SPC-5x10-03AL		Spacer 5.2d x 10D x 3W Aluminium. Pack of 6.	£3.31
SPC-5x10-06AL		Spacer 5.2d x 10D x 6W Aluminium. Pack of 6.	£4.14
SPC-5x10-09AL		Spacer 5.2d x 10D x 9W Aluminium Pack of 4.	£4.31
SPC-5x10-20AL		Spacer 5.2d x 10D x 20W Aluminium. Pack of 2.	£2.70
NUT-M5-BZP		Nut M5 BZP. Pack 200	£1.60
WASHER-LOCK-M5		Locking Washer M5, Overlap external. Pack 50.	£0.56
WASHER-A-M5-BZP		Washer M5, Form A, BZP, Pack 100	£0.58
