Simple Winch Example

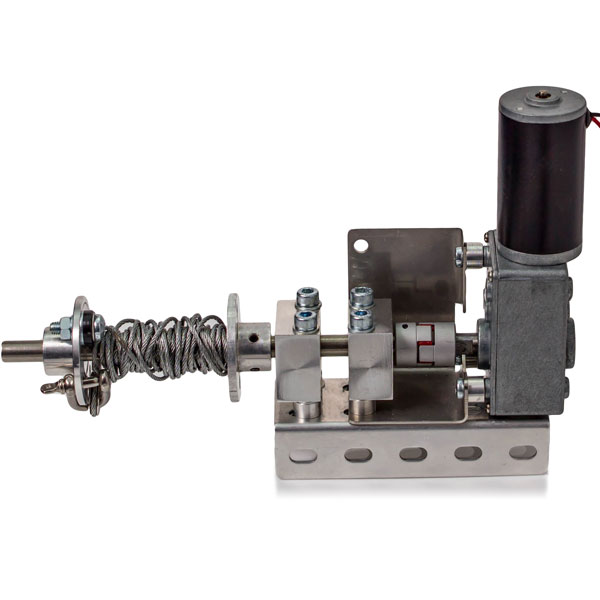

This is a simple motorized Winch for lifting weights up to 5KG. All the parts used are available on our site. This example is now available as a Kit.

Part Number (Link)	Image	Description	Price each	Quantity Used
BB08M		Pillow Block with 8mm Bore Ball Bearing	£6.14
SH08M		303 Stainless Steel Shaft, 8mm Diameter	£4.31
CP08-08		Miniature Coupling. Bores 8mm-8mm	£11.00
CHAN100X40		Construction Channel, 100 x 40 x 22	£3.53
MKTH040-8		Flanged Turntable Hub with 8mm Bore	£5.24
GMW40W0634		Worm Gearmotor, Ratio 634:1	£41.38
GMW40WBKT		Bracket for GMW40 Motors	£6.28
SPC-5x10-06AL		Spacer 5.2d x 10D x 6W Aluminium. Pack of 6.	£4.14
WASHER-A-M5-BZP		Washer M5, Form A, BZP, Pack 100	£0.58
