Worm Gearbox Gearmotor

Worm and Wheel Gearmotors. Permanent Magnet DC motors together with Worm Gear type Gearboxes offer a relatively high torque output in a compact size and with an output at right angles to the motor. An advantage of Worm and Wheel Gearboxes is limited back drivability: the worm driven by the motor can easily turn the gear on the output, but the gear cannot turn the worm. This provides a form of brake which can be useful in certain applications for example lifting. These motors can be run in both directions.

GMW32 Series

Worm Gearbox Gearmotor

GMW40 Series

Worm Gearbox Gearmotor
Gearmotor Data at Nominal 12V (Voltage Range 6-24V)
Part Number Voltage
Range		 Nominal
Voltage		 Gearmotor Data at Nominal 12V
Data with no Load Data at Maximum Efficiency Stall
Speed
RPM		 Current
A		 Speed
RPM		 Torque
Nm		 Current
A		 Torque
Nm		 Current
A
GMW32 Series
GMW32W0069 6V-24V 12V 112 0.04 87 0.07 0.14 0.29 0.5
GMW32W0100 6V-24V 12V 64 0.04 51 0.08 0.11 0.42 0.43
GMW32W0180 6V-24V 12V 44 0.04 35 0.09 0.15 0.69 0.55
GMW32W0330 6V-24V 12V 24 0.03 18 0.27 0.14 1.27 0.53
GMW32W0950 6V-24V 12V 8.5 0.03 7 0.84 0.14 4.30 0.48
GMW32W1650 6V-24V 12V 2 0.02 1.7 1.32 0.13 2.40 0.3
GMW32W5300 6V-24V 12V 0.6 0.01 0.5 2.43 0.09 5.19 0.39
GMW40 Series
GMW40W0049 6V-24V 12V 156 0.26 118 0.25 0.77 1.06 2.23
GMW40W0074 6V-24V 12V 103 0.21 80 0.37 0.69 1.60 2.28
GMW40W0218 6V-24V 12V 35 0.26 27 1.44 0.75 4.12 2.25
GMW40W0290 6V-24V 12V 26 0.26 20 1.62 0.75 4.95 2.28
GMW40W0505 6V-24V 12V 15 0.22 11 2.13 0.72 8.9 2.23
GMW40W0634 6V-24V 12V 4 0.26 3.5 5.85 0.92 12.6 2.28

Worm and Wheel Gearmotor Bracket

Stainless Steel bracket to fit all Worm and Wheel Gearmotors. Part number GMW32BKT fits all GMW32 series motors, and part number GMW40BKT fits all GMW40 series motors. The bracket includes the correct screws for attaching the bracket to the motor.

Worm Gearbox Gearmotor Stand
Worm Gearbox Gearmotor

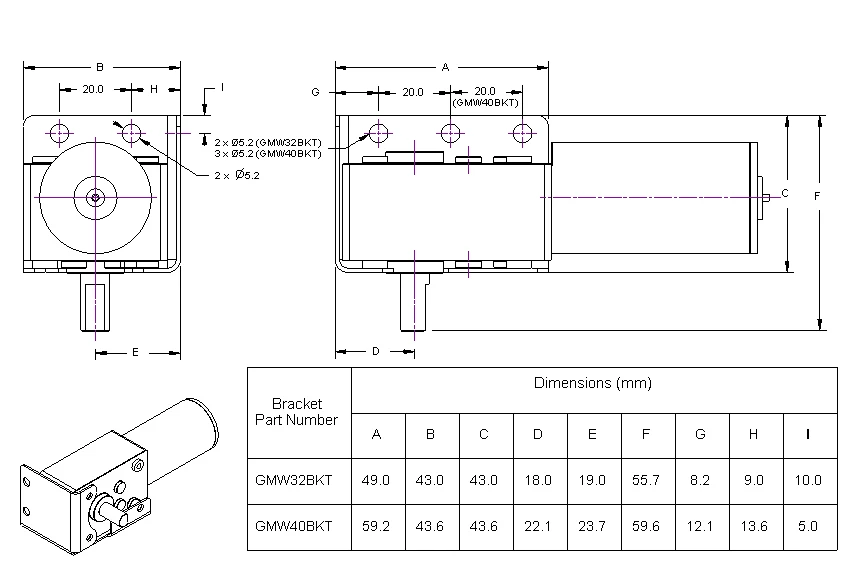

Worm Gearbox Gearmotor Stand DimensionsWorm Gearbox Gearmotor Stand Dimensions

Bracket dimensions (mm)
Bracket Part Number Dimensions (mm)
A B C D E F G H I
GMW32WBKT 49.0 35.0 43.0 18.0 19.0 55.7 8.2 9.0 10.0
GMW40WBKT 59.2 43.6 43.6 22.1 23.7 59.6 12.1 13.6 5.0
!
