0.5 Mod Spur Gears

Our smallest size range of moulded plastic spur gears in 0.5 mod pitch. These gears are suitable for a range of applications from model making to robotics and light industrial drives.

0.5 mod gear

Specification

Material: Delrin Acetal
Tooth form: 0.5 mod involute profile with 20° pressure angle
Operating temperature: -50°C to 80°C
Face width: 3mm

0.5 MOD Gear Drawing
All dimensions in mm
GR05M012 12 6 7 2 4 4 n/a n/a
GR05M016 16 8 9 3 6 7 n/a n/a

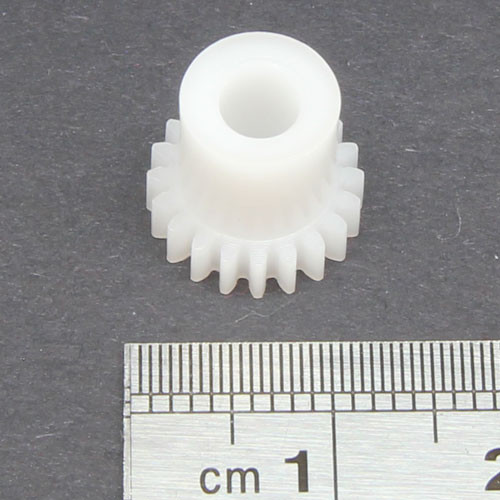

GR05M020 20 10 11 4 8 7 n/a n/a
GR05M024 24 12 13 4 10 7 n/a n/a
GR05M028 28 14 15 4 10 7 n/a n/a
GR05M032 32 16 17 4 12 7 n/a n/a

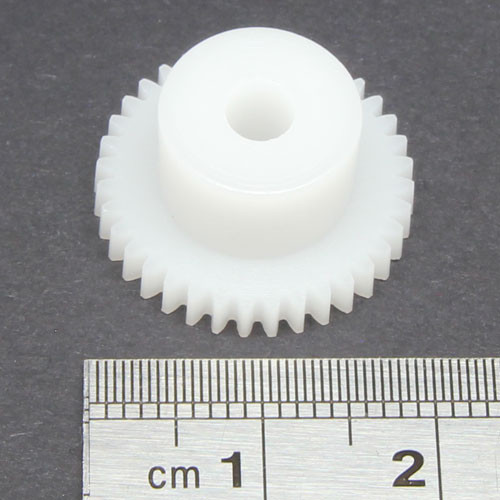

GR05M036 36 18 19 4 12 7 n/a n/a
GR05M040 40 20 21 4 12 7 2 14
GR05M048 48 24 25 6 15 7 2 19
GR05M060 60 30 31 6 15 7 2 24

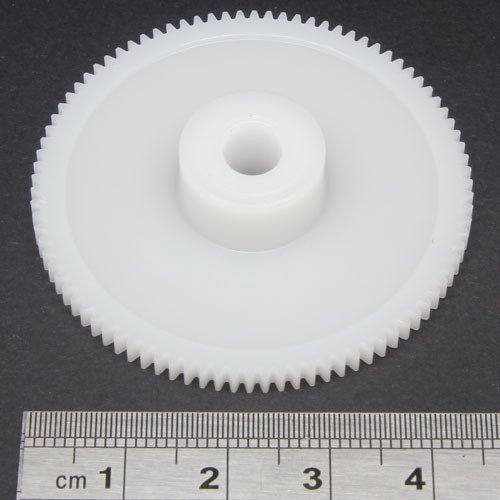

GR05M090 90 45 46 6 15 7 2 39

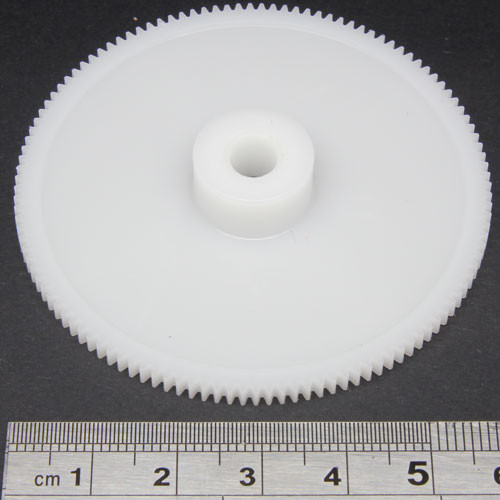

GR05M120 120 60 61 6 15 7 2 54
!
