MXL Timing Belts

Timing belts in MXL pitch are ideal where a small, synchronous drive is required e.g. Model Making, Instrumentation, Office Machinery. These MXL belts can be used with our range of Aluminium MXL Pulleys.

Our Centre Distance Calculator will work out your pulley centres, based on our range of belts.

Specification for MXL Belt

  • Material: Nylon Covered, Fiberglass Reinforced, Neoprene
  • Belt width: 1/4" (6.35mm)
  • Working Tension: 4.5 lbs (20N)
  • Maximum speed: Up to 20,000 r.p.m.
  • Operating temp range: -34°C to +85°C
    (-30° to +185°F)

MXL Belt
MXL Belt drawing
Part no No. of Teeth  Pitch Length    Part no No. of Teeth  Pitch Length
mm Inches mm Inches
BMXL026 26 52.8 2.08   BMXL170 170 345.4 13.60
BMXL033 33 67.1 2.64   BMXL180 180 365.8 14.40
BMXL040 40 81.3 3.20   BMXL200 200 406.4 16.00
BMXL045 45 91.4 3.60   BMXL250 250 508.0 20.0
BMXL054 54 109.7 4.32   BMXL280 280 568.7 22.40
BMXL063 63 128.0 5.04   BMXL300 300 609.6 24.00
BMXL075 75 152.4 6.00   BMXL320 320 650.2 25.60
BMXL080 80 162.6 6.40   BMXL350 350 711.2 28.00
BMXL090 90 182.9 7.20   BMXL362 362 735.6 28.96
BMXL100 100 203.2 8.00   BMXL378 378 768.1 30.24
BMXL110 110 223.5 8.80   BMXL400 400 812.8 32.00
BMXL120 120 243.8 9.60   BMXL453 453 920.5 36.24
BMXL133 133 270.3 10.64   BMXL475 475 965.2 38.00
BMXL140 140 284.5 11.20   BMXL500 500 1016.0 40.00
BMXL150 150 304.8 12.00   BMXL550 550 1117.6 44.00
BMXL160 160 325.1 12.80   BMXL648 648 1316.74 51.84


Select from our range of MXL belts below.

Display: ListGrid
Show:
Sort By:
MXL Rubber Timing Belt, 26 T
MXL Rubber Timing Belt, 26 T
BMXL026
MXL Rubber Timing Belt, 26 T, 1/4" wide, length 2.08". ..
Stock: 2 pcs
£3.11 /each
Excl. VAT: £2.59
10 or more: £2.51 /each
25 or more: Please ask
MXL Rubber Timing Belt, 33 T
MXL Rubber Timing Belt, 33 T
BMXL033
MXL Rubber Timing Belt, 33 T, 1/4" wide, length 2.64". ..
Stock: 5 pcs
£3.28 /each
Excl. VAT: £2.74
10 or more: £2.66 /each
25 or more: Please ask
MXL Rubber Timing Belt, 45 T
MXL Rubber Timing Belt, 45 T
BMXL045
MXL Rubber Timing Belt, 45 T, 1/4" wide, length 3.60". ..
Stock: 2 pcs
£5.75 /each
Excl. VAT: £4.80
10 or more: £4.60 /each
25 or more: Please ask
MXL Rubber Timing Belt, 54 T
MXL Rubber Timing Belt, 54 T
BMXL054
MXL Rubber Timing Belt, 54 T, 1/4" wide, length 4.32". ..
Stock: 11 pcs
£3.55 /each
Excl. VAT: £2.96
10 or more: £2.87 /each
25 or more: Please ask
MXL Rubber Timing Belt, 63 T
MXL Rubber Timing Belt, 63 T
BMXL063
MXL Rubber Timing Belt, 63 T, 1/4" wide, length 5.04". ..
Stock: 8 pcs
£3.63 /each
Excl. VAT: £3.02
10 or more: £2.93 /each
25 or more: Please ask
MXL Rubber Timing Belt, 75 T
MXL Rubber Timing Belt, 75 T
BMXL075
MXL Rubber Timing Belt, 75 T, 1/4" wide, length 6". ..
Stock: 3 - 4 Weeks
£3.73 /each
Excl. VAT: £3.11
10 or more: £2.99 /each
25 or more: Please ask
MXL Rubber Timing Belt, 80 T
MXL Rubber Timing Belt, 80 T
BMXL080
MXL Rubber Timing Belt, 80 T, 1/4" wide, length 6.40". ..
Stock: 7 pcs
£3.81 /each
Excl. VAT: £3.17
10 or more: £3.08 /each
25 or more: Please ask
MXL Rubber Timing Belt, 90 T
MXL Rubber Timing Belt, 90 T
BMXL090
MXL Rubber Timing Belt, 90 T, 1/4" wide, length 7.20". ..
Stock: 18 pcs
£3.89 /each
Excl. VAT: £3.24
10 or more: £3.15 /each
25 or more: Please ask
MXL Rubber Timing Belt, 100 T
MXL Rubber Timing Belt, 100 T
BMXL100
MXL Rubber Timing Belt, 100 T, 1/4" wide, length 8.00". ..
Stock: 15 pcs
£3.95 /each
Excl. VAT: £3.29
10 or more: £3.17 /each
25 or more: Please ask
MXL Rubber Timing Belt, 110 T
MXL Rubber Timing Belt, 110 T
BMXL110
MXL Rubber Timing Belt, 110 T, 1/4" wide, length 8.80". ..
Stock: 73 pcs
£3.99 /each
Excl. VAT: £3.32
10 or more: £3.20 /each
25 or more: Please ask
MXL Rubber Timing Belt, 120 T
MXL Rubber Timing Belt, 120 T
BMXL120
MXL Rubber Timing Belt, 120 T, 1/4" wide, length 9.60". ..
Stock: 2 pcs
£4.03 /each
Excl. VAT: £3.36
10 or more: £3.24 /each
25 or more: Please ask
MXL Rubber Timing Belt, 133 T
MXL Rubber Timing Belt, 133 T
BMXL133
MXL Rubber Timing Belt, 133 T, 1/4" wide, length 10.64". ..
Stock: 23 pcs
£4.17 /each
Excl. VAT: £3.47
10 or more: £3.35 /each
25 or more: Please ask
MXL Rubber Timing Belt, 140 T
MXL Rubber Timing Belt, 140 T
BMXL140
MXL Rubber Timing Belt, 140 T, 1/4" wide, length 11.20". ..
Stock: 2 pcs
£4.65 /each
Excl. VAT: £3.88
10 or more: £3.73 /each
25 or more: Please ask
MXL Rubber Timing Belt, 150 T
MXL Rubber Timing Belt, 150 T
BMXL150
MXL Rubber Timing Belt, 150 T, 1/4" wide, length 12.0". ..
Stock: 5 pcs
£4.69 /each
Excl. VAT: £3.91
10 or more: £3.77 /each
25 or more: Please ask
MXL Rubber Timing Belt, 160 T
MXL Rubber Timing Belt, 160 T
BMXL160
MXL Rubber Timing Belt, 160 T, 1/4" wide, length 12.80". ..
Stock: 63 pcs
£4.79 /each
Excl. VAT: £3.99
10 or more: £3.82 /each
25 or more: Please ask
MXL Rubber Timing Belt, 170 T
MXL Rubber Timing Belt, 170 T
BMXL170
MXL Rubber Timing Belt, 170 T, 1/4" wide, length 13.60". ..
Stock: 15 pcs
£4.87 /each
Excl. VAT: £4.06
10 or more: £3.89 /each
25 or more: Please ask
MXL Rubber Timing Belt, 180 T
MXL Rubber Timing Belt, 180 T
BMXL180
MXL Rubber Timing Belt, 180 T, 1/4" wide, length 14.40"...
Stock: 14 pcs
£5.09 /each
Excl. VAT: £4.24
10 or more: £4.07 /each
25 or more: Please ask
MXL Rubber Timing Belt, 200 T
MXL Rubber Timing Belt, 200 T
BMXL200
MXL Rubber Timing Belt, 200 T, 1/4" wide, length 16.00"...
Stock: 17 pcs
£5.19 /each
Excl. VAT: £4.32
10 or more: £4.14 /each
25 or more: Please ask

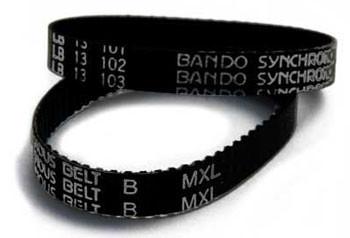

MXL Rubber Timing Belt, 280 T
MXL Rubber Timing Belt, 280 T
BMXL280
MXL Rubber Timing Belt, 280T, 1/4" wide, length 22.4". ..
Stock: 3 - 4 Weeks
£6.38 /each
Excl. VAT: £5.31
10 or more: £5.08 /each
25 or more: Please ask
MXL Rubber Timing Belt, 300 T
MXL Rubber Timing Belt, 300 T
BMXL300
MXL Rubber Timing Belt,300T, 1/4" wide, length 24". ..
Stock: 17 pcs
£6.87 /each
Excl. VAT: £5.73
10 or more: £5.45 /each
25 or more: Please ask
MXL Rubber Timing Belt, 320T
MXL Rubber Timing Belt, 320T
BMXL320
MXL Rubber Timing Belt, 320T, 1/4" wide, length 25.6". ..
Stock: 8 pcs
£7.44 /each
Excl. VAT: £6.20
10 or more: £5.91 /each
25 or more: Please ask
MXL Rubber Timing Belt, 350 T
MXL Rubber Timing Belt, 350 T
BMXL350
MXL Rubber Timing Belt, 350T, 1/4" wide, length 28". ..
Stock: 2 pcs
£7.98 /each
Excl. VAT: £6.65
10 or more: £6.32 /each
25 or more: Please ask
MXL Rubber Timing Belt, 362 T
MXL Rubber Timing Belt, 362 T
BMXL362
MXL Rubber Timing Belt, 362T, 1/4" wide, length 28.96"...
Stock: 33 pcs
£8.82 /each
Excl. VAT: £7.35
10 or more: £6.97 /each
25 or more: Please ask
MXL Rubber Timing Belt, 378 T
MXL Rubber Timing Belt, 378 T
BMXL378
MXL Rubber Timing Belt, 378T, 1/4" wide, length 30.24"...
Stock: 17 pcs
£8.82 /each
Excl. VAT: £7.35
10 or more: £6.97 /each
25 or more: Please ask
MXL Rubber Timing Belt, 400 T
MXL Rubber Timing Belt, 400 T
BMXL400
MXL Rubber Timing Belt, 400T, 1/4" wide, length 32"...
Stock: 66 pcs
£9.16 /each
Excl. VAT: £7.64
10 or more: £7.25 /each
25 or more: Please ask
MXL Rubber Timing Belt, 453 T
MXL Rubber Timing Belt, 453 T
BMXL453
MXL Rubber Timing Belt, 453 T, 1/4" wide, length 36.24". ..
Stock: 1 pc
£10.90 /each
Excl. VAT: £9.09
10 or more: £8.60 /each
25 or more: Please ask
MXL Rubber Timing Belt, 475 T
MXL Rubber Timing Belt, 475 T
BMXL475
MXL Rubber Timing Belt, 475 T, 1/4" wide, length 38.0". ..
Stock: 4 pcs
£11.16 /each
Excl. VAT: £9.30
10 or more: £8.80 /each
25 or more: Please ask
MXL Rubber Timing Belt, 500 T
MXL Rubber Timing Belt, 500 T
BMXL500
MXL Rubber Timing Belt, 500 T, 1/4" wide, length 40.00"...
Stock: 62 pcs
£11.43 /each
Excl. VAT: £9.52
10 or more: £9.01 /each
25 or more: Please ask
MXL Rubber Timing Belt, 550 T
MXL Rubber Timing Belt, 550 T
BMXL550
MXL Rubber Timing Belt, 550 T, 1/4" wide, length 44.0". ..
Stock: 4 pcs
£11.69 /each
Excl. VAT: £9.74
10 or more: £9.22 /each
25 or more: Please ask
