MXL Timing Pulleys Aluminium

A range of Aluminium timing pulleys in MXL pitch, suitable for a range of applications e.g. Model Making, Instrumentation, Office Machinery. They run with our range of MXL Belts.

Material: Aluminium
Tooth form: MXL, 2.03mm (0.08") pitch
To suit Belt width: 6.35mm (1/4")
Set Screw: Included

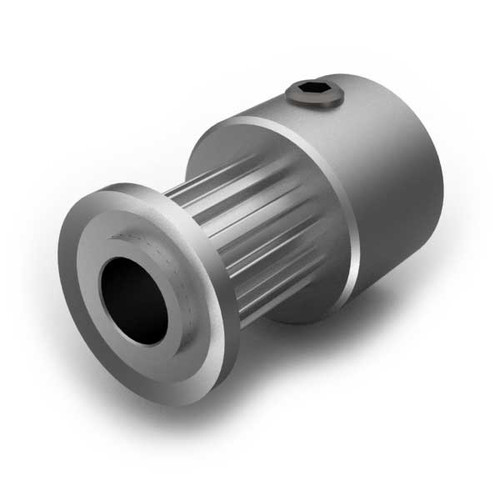

MXL aluminium pulley

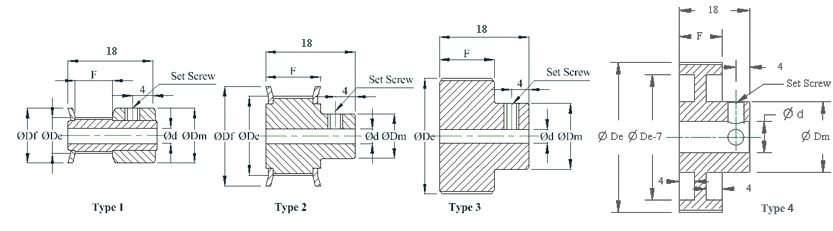

MXL pulley drawing
All dimensions in mm
Part No. No. of
Teeth		 Type All dimensions in mm
Pitch Dia.
"P.D."		 Outside Dia.
"De"		 Flange Dia.
"Df"		 Hub Dia.
"Dm"		 Tooth Width
"F"		 Bore Dia.
"d"
PLMXL010AL-03 10 1 6.48 5.97 10.0 10.0 7.5 3
PLMXL012AL-03 12 1 7.77 7.26 10.0 11.0 7.5 3
PLMXL012AL-04 12 1 7.77 7.26 10.0 11.0 7.5 4
PLMXL016AL-03 16 1 10.34 9.83 15.0 15.0 7.5 3
PLMXL016AL-06 16 1 10.34 9.83 15.0 15.0 7.5 6
PLMXL018AL-05 18 1 11.60 11.10 16.0 16.0 7.5 5
PLMXL018AL-06 18 1 11.60 11.10 15.0 15.0 7.5 6
PLMXL020AL-03 20 1 12.93 12.42 16.0 16.0 7.5 3
PLMXL020AL-06 20 1 12.93 12.42 16.0 16.0 7.5 6
PLMXL024AL-03 24 1 15.52 15.01 18.0 18.0 7.5 3
PLMXL024AL-06 24 1 15.52 15.01 18.0 18.0 7.5 6
PLMXL030AL-04 30 2 19.41 18.90 25.0 12.0 11.0 4
PLMXL030AL-06 30 2 19.41 18.90 25.0 12.0 11.0 6
PLMXL032AL-04 32 2 20.70 20.19 26.0 14.0 11.0 4
PLMXL032AL-06 32 2 20.70 20.19 26.0 14.0 11.0 6
PLMXL036AL-04 36 2 23.29 22.78 29.0 15.0 11.0 4
PLMXL036AL-06 36 2 23.29 22.78 29.0 15.0 11.0 6
PLMXL040AL-04 40 2 25.88 25.37 32.0 18.0 11.0 4
PLMXL040AL-06 40 2 25.88 25.37 32.0 18.0 11.0 6
PLMXL048AL-05 48 3 31.04 30.53 - 20.0 11.0 5
PLMXL048AL-08 48 3 31.04 30.53 - 20.0 11.0 8
PLMXL060AL-05 60 3 38.81 38.30 - 24.0 11.0 5
PLMXL060AL-08 60 3 38.81 38.30 - 24.0 11.0 8
PLMXL100AL-05 100 4 64.70 64.20 - 23.0 11.0 5
PLMXL100AL-08 100 4 64.70 64.20 - 23.0 11.0 8
PLMXL120AL-05 120 4 77.62 77.11 - 23.0 11.0 5
PLMXL120AL-08 120 4 77.62 77.11 - 23.0 11.0 8

Note: All pulleys are fitted with grub screws. Bore reducers are available for several sizes above 20T — see our Bore Reducers page.

!
