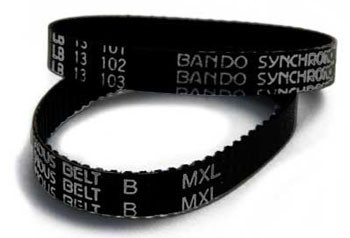

MXL Timing Belts
Timing belts in MXL pitch are ideal where a small, synchronous drive is required e.g. Model Making, Instrumentation, Office Machinery. These MXL belts can be used with our range of Aluminium MXL Pulleys.
Specification for MXL Belt
- Material: Nylon Covered, Fiberglass Reinforced, Neoprene
- Belt width: 1/4" (6.35mm)
- Working Tension: 4.5 lbs (20N)
- Maximum speed: Up to 20,000 r.p.m.
- Operating temp range: -34°C to +85°C
(-30° to +185°F)
| BMXL026 | 26 | 52.8 | 2.08 | BMXL170 | 170 | 345.4 | 13.60 | |
| BMXL033 | 33 | 67.1 | 2.64 | BMXL180 | 180 | 365.8 | 14.40 | |
| BMXL040 | 40 | 81.3 | 3.20 | BMXL200 | 200 | 406.4 | 16.00 | |
| BMXL045 | 45 | 91.4 | 3.60 | BMXL250 | 250 | 508.0 | 20.0 | |
| BMXL054 | 54 | 109.7 | 4.32 | BMXL280 | 280 | 568.7 | 22.40 | |
| BMXL063 | 63 | 128.0 | 5.04 | BMXL300 | 300 | 609.6 | 24.00 | |
| BMXL075 | 75 | 152.4 | 6.00 | BMXL320 | 320 | 650.2 | 25.60 | |
| BMXL080 | 80 | 162.6 | 6.40 | BMXL350 | 350 | 711.2 | 28.00 | |
| BMXL090 | 90 | 182.9 | 7.20 | BMXL362 | 362 | 735.6 | 28.96 | |
| BMXL100 | 100 | 203.2 | 8.00 | BMXL378 | 378 | 768.1 | 30.24 | |
| BMXL110 | 110 | 223.5 | 8.80 | BMXL400 | 400 | 812.8 | 32.00 | |
| BMXL120 | 120 | 243.8 | 9.60 | BMXL453 | 453 | 920.5 | 36.24 | |
| BMXL133 | 133 | 270.3 | 10.64 | BMXL475 | 475 | 965.2 | 38.00 | |
| BMXL140 | 140 | 284.5 | 11.20 | BMXL500 | 500 | 1016.0 | 40.00 | |
| BMXL150 | 150 | 304.8 | 12.00 | BMXL550 | 550 | 1117.6 | 44.00 | |
| BMXL160 | 160 | 325.1 | 12.80 | BMXL648 | 648 | 1316.74 | 51.84 |
Select from our range of MXL belts below.
